TAZEET Tire Tread Depth Gauge, Color-Coded 0–32/32 in and 0–25 mm Tool for Cars, Motorcycles and Trucks

TAZEET Tire Tread Depth Gauge

Measure remaining tire tread depth on cars, motorcycles, trucks, buses and other passenger vehicles. Each compact gauge uses a dual scale in 32nds of an inch and millimetres, with colour-coded zones for quick visual reference.

Product Features

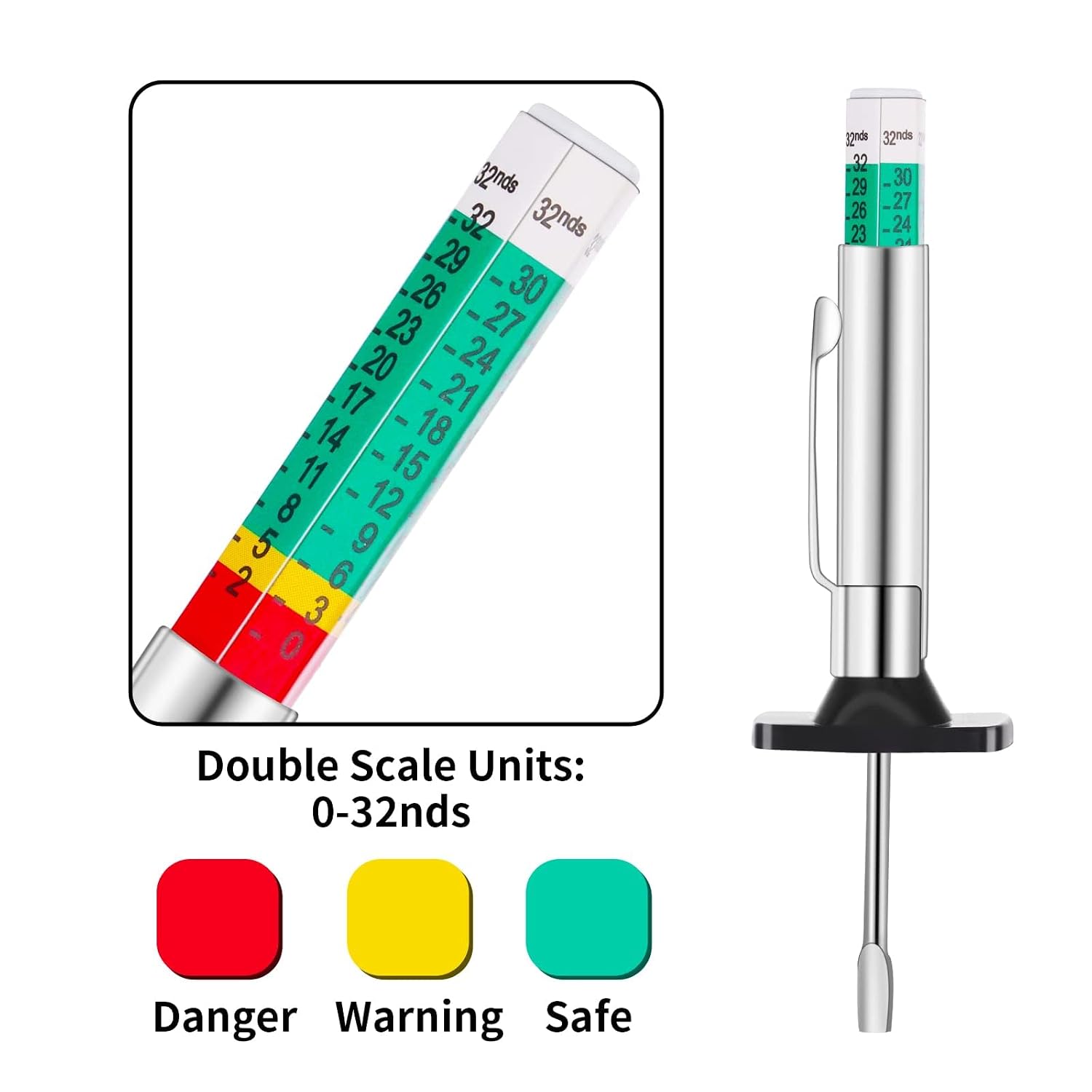

• Dual measurement scale: Measures from 0 to 32/32 inch and up to 25 mm.

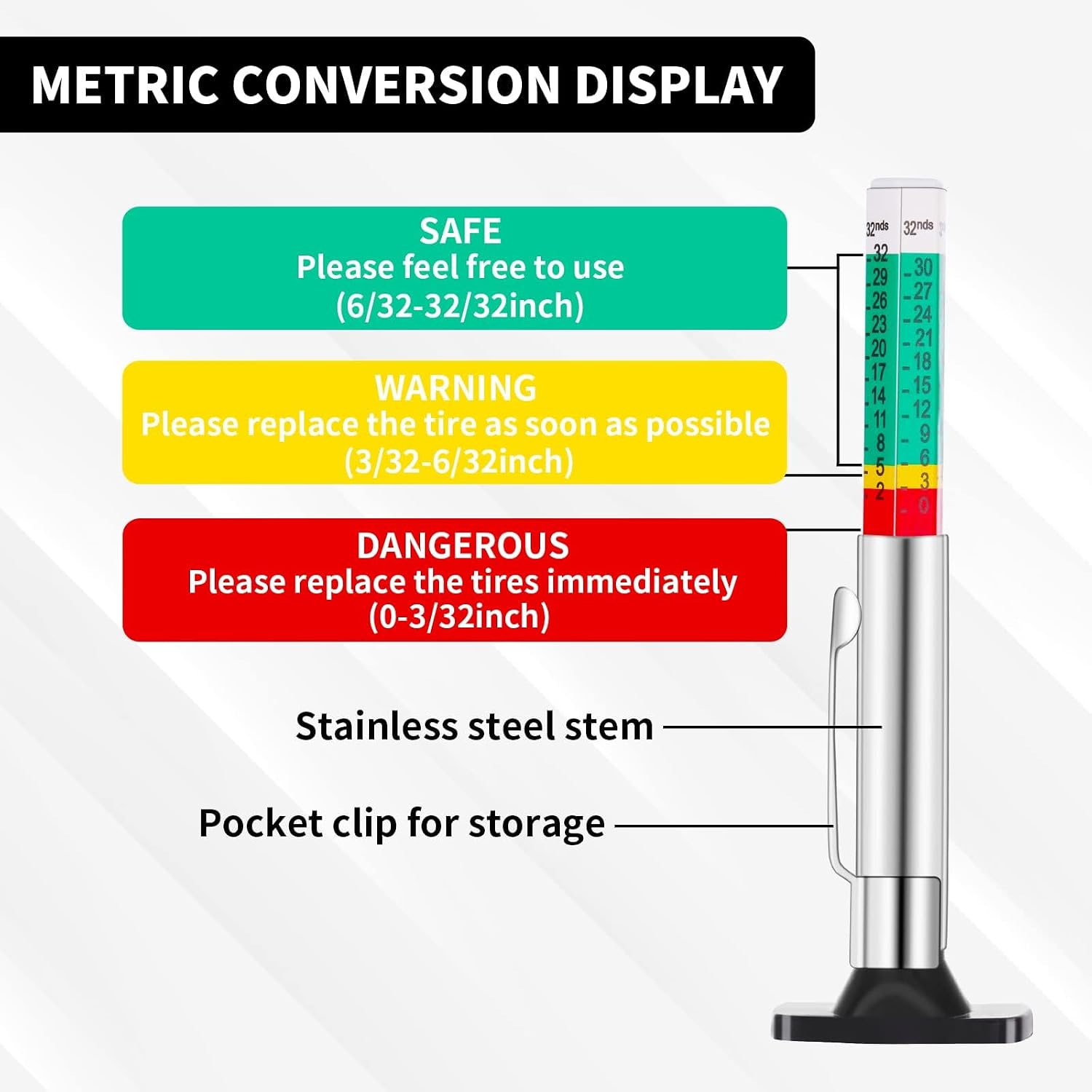

• Colour-coded reference: Red covers 0–3/32 inch, yellow covers above 3/32 to 6/32 inch and green covers above 6/32 to 32/32 inch.
• Clear scale markings: The six-sided scale supports easy reading from multiple angles.

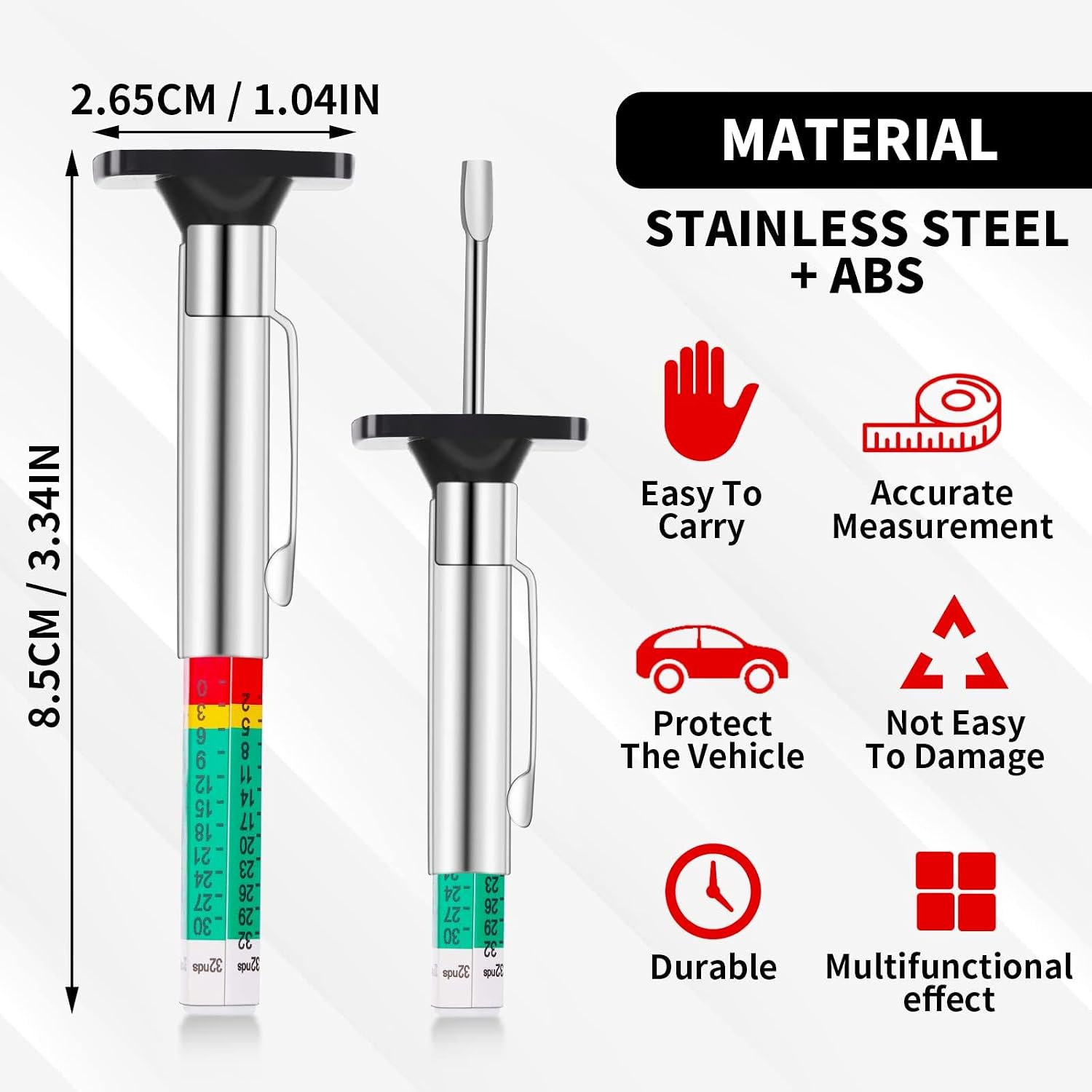

• Durable construction: Made with a plastic scale, metal barrel, metal probe and pocket clip, with a controlled sliding mechanism.
• Portable 2-pack: Each gauge has a pocket clip and fits easily in a toolbox, glove compartment or pocket.

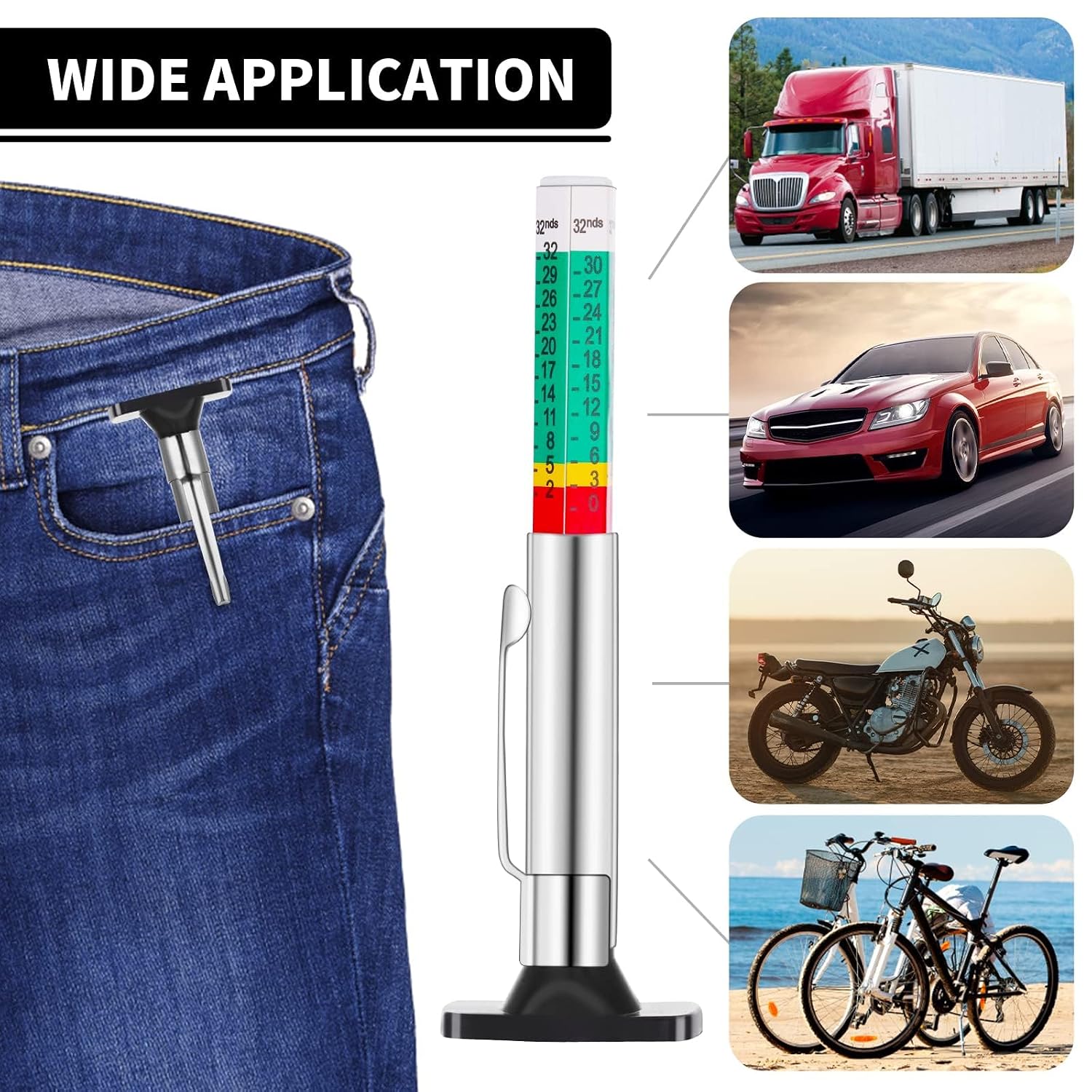

• Vehicle compatibility: Suitable for routine tread checks on cars, motorcycles, trucks, buses and passenger vehicles.

How to Measure Tire Tread Depth

1. Press the measuring scale fully into the gauge body.
2. Place the metal probe vertically into the centre of a main circumferential tire groove.
3. Press the flat base down until it rests against the tire tread surface.
4. Lift the gauge straight up by the barrel without moving the measuring scale, then read the result.
5. Repeat the check at several points around the tire and across the inner, centre and outer grooves.
6. Use the lowest reading when assessing uneven wear. Have the tire inspected by a qualified tire professional if wear is uneven or the tread is approaching the applicable replacement limit.

Important: The colour zones are a visual reference only. Always follow local legal requirements, the tire manufacturer’s guidance and professional inspection advice.

Package Contents

1 × TAZEET Tire Tread Depth Gauges
